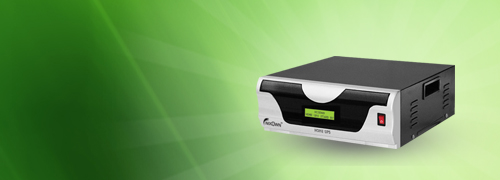

Sine wave HOME ups
- Exceed our customer’s needs and expectations
- Continue technological innovation
- Improve Quality throughout
- Maintain a winning atmosphere always
Features
- DSP Based intelligent technology
- LCD based display for showing parameters and status
- Protection against 440V mains input
- Protection against reverse polarity
- Dynamic short circuit protection with fold-back current limiting
- Cut off and auto restart with permanent cut after 5 consecutive cut off
- Protection against battery low, over load, heavy load, short circuit etc
- Early warning for battery low and overload conditions.
System continues normally if the error is corrected
- SMPS type 4 stage intelligent constant current I constant Voltage charger with full charge cutoff.
- 20KHz operating freequency while inverter and charging, absolutely no sound
- Protection against accidental output feedback disconnection
- Pure sinewave. Safe to all kind of loads.
- Ideal for Mixed load application
- Indigenous design with proven technology.
- Generator compatibility
- Priority solar charging
Specification
- Battery Input voltage - 12V DC - 48V DC (Various models)
- Mains Input voltage - 230V AC, 50Hz.
- Mains input range - OV-270V,45Hz-65Hz
- Mains High voltage withstand - Up to 440V
- AC Output (Inverter) - 230V +/-3%, 50Hz
- Inverter Output wave - Pure sinewave (harmonic distortion less than 1%)
- Inverter topology - Bridge type center aligned switching. MOSFET based
- Battery charging voltage - Intelligent 4 stage charger Constant current / constant
- Charging current - SMPS charging with full charge cutoff
- Charging working range - Settable from 1A t 15A
- Inverter Protections - 120V - 270V AC Mains input
- Charger Protections - Overload, Short circuit, Battery deep discharge
- Display interlace - Over charge, Battery disconnection during charging
- LCD display shows - LCD interface
