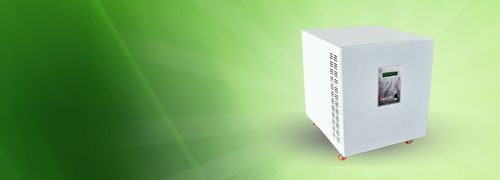

Sine Wave UPS
- Exceed our customer’s needs and expectations
- Continue technological innovation
- Improve Quality throughout
- Maintain a winning atmosphere always
Features
- Single chip embedded UPS engine based universal card capable of voltages from 12Vto 72 VDC & power from 500VA to 3KVA
- FOR 150V to 290V mains input 205V to 245V output
- Static Switch transfer near zero current/zero voltage. & Synchronized change over
- Over current of MOSFETs protected within micro seconds.
- Power failure checking by simultaneous several methods.
- Can accept any input waves like sine wave, generator waves etc. if voltage & frequency is within limit.
- MOSFETs drain spikes protected.
- Automatic battery health checkup as well as battery bad detection.
- Optional inbuilt fan socket , battery reverse protection relay,& heavy duty bypass relay signals .
- Preset control for setting charging current , overload, AVR and output voltage.
- RMC lower than imaginable level.
- Assembly/testing/repair tooll support with separate diagnostic ICS.
- Minimal in built self diagnostic to check basic hardware.
- Dead band shorting Mosfets to provide perfect regulation and tube lights and other loads can connected along with computer.
- In built PFC controlled charger using dead band shot mosfets with charging current selectable from 100mamps to 15 amps.
- Mixed load compatibility.
- Overload 2min delay with warning by buzzer and LED upto 130% of rated capacity and 5times auto restart after trip. 400% overload surge capacity to take cold start of several computers.
- Error code display on LCD/ LEDs to diagnose hard and soft errors.
- Watchdog timer implementation to prevent CPU hang ups.
- LCD display showing battery voltage, mains voltage, load current, mains/ups status and trip status and diagnostics.
Specification
- VA Rating : 500 VA to 3 KVA
- Input range : 150V to 290V and output 205V to 245V
- Input DC : 12V upto 600VA / 24V upto 1KVA / 36V-2KVA / 48V 3KVA Input
- Frequency range : 40 to 60 HZ
- Inverter output frequency : 49 to 51 HZ
- Output waveform : Pure Sine wave
- Output voltage in inverter: 220V +/ 5V
- Inverter efficiency: > 90%
- Power factor: 0.8
- Typical transfer time: near zero millisecond.
